Three-phase filters

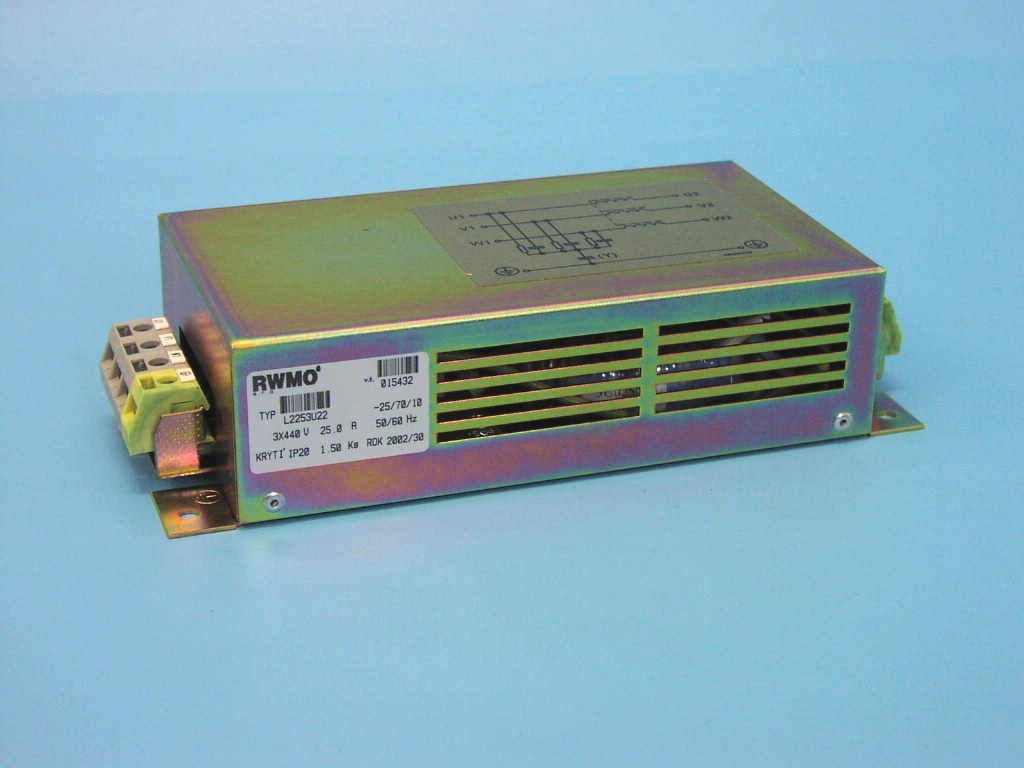

Three-phase interference filters up to 25A
Technical data
-
nominal voltage 3x440V/50-60Hz
-
nominal current - see table
-
specific dielectric strength between terminals 1.000V DC, between terminals and case 3.000V DC.
-
leaking current - see table
-
IP20 protection
-
nominal temperature +40°C
-
category climatic immunity 25/70/10
-
terminal connectors without screws of a cross-section up to 2.5 mm2 (to 10A), or terminal connectors with screws 4 mm2 (16 - 25A)
| Type of filter | Nom. current [A] | Leak. current [mA] | Order number | Weight [kg] | Size | Price |
| L0063U22 | 6,3 | <3,5 | 371512903002 | 0,47 | 1 | price |
| L0103U22 | 10 | <3,5 | 371512903003 | 0,49 | 1 | price |
| L2163U22 | 16 | <3,5 | 371512903038 | 1,5 | 2 | price |
| L2253U22 | 25 | <3,5 | 371512903039 | 1,5 | 2 | price |
|
Table - Type of filter |
|||
|
NC |
filters for convertors |
N |
L element- modification |
|
NM |
filters for convertors |
P |
p - element |
|
NL |
filters for convertors |
C |
dual filters for convertors |
|
NA |
L element sealed |
A |
L element sealed |
|
NB, ND |
L element sealed |
S |
special model |
|
L |
L element |
F |
filters for Faraday boxes |
|
M |
L element- modification |
|
|
| Table - Leaking current max. | |||
| 0 | no limit | 6 | 1.7 mA |
| 1 | 0.75 mA | 7 | 20 mA |
| 2 | 3.5 mA | 8 | 1.5 mA |
| 3 | 10 mA | 9 | other |
| 4 | 40 mA | N | none |
| 5 | 0.35 mA | ||
-
L type filters - lowpass filters are designed to suppress radio interference in the frequency band 0.15 - 30MHz
-
the filters are attached to a metal frame connected to the skeleton with two M4 screws (from 10A with screws M5)
-
the filters are connected in such a way that alignment of the suppressed (inlet) and unsuppressed (outlet and all other) wires does not occur
