Single-phase

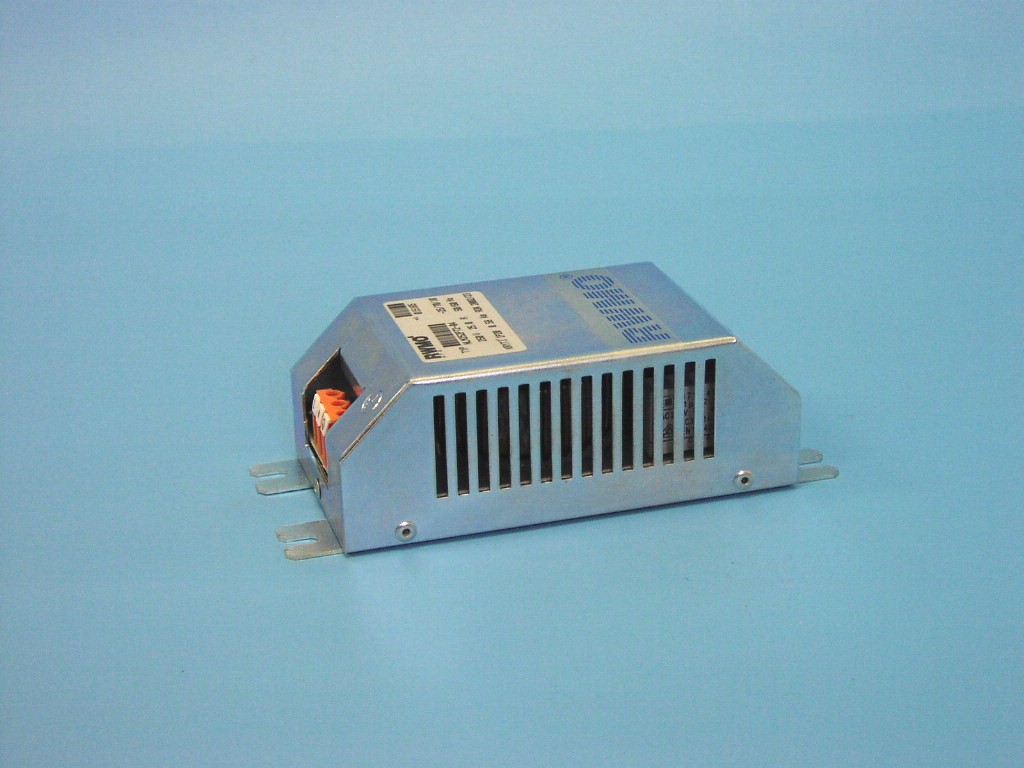

Universal one-phase interference filters for convertors
Technical data
-
nominal voltage - model 250V/50-60Hz
-
nominal current - see table
-
leaking current - see table
-
specific dielectric strength between terminals 1.000V DC, between terminals and case 3.000V DC
-
IP20 protection
-
nominal temperature +40°C
-
category climatic immunity 25/70/10
-
terminal connectors with screws of a cross-section up to 4 mm2
-
line wire length between filter and interference generator must be the shortest
| Type of filter | Nominal current [A] | Leaking current [mA] | Order number | Weight [kg] | Size | Price |
| NLN062P72-04 | 6,3 | 16 | 371512902131 | 0,53 | 1 | price |
| NLM062P72-04 | 6,3 | 16 | 371512902132 | 0,53 | 1 | price |
| NLN102P72-04 | 10 | 16 | 371512902133 | 0,53 | 1 | price |
| NLM102P72-04 | 10 | 16 | 371512902134 | 0,53 | 1 | price |
| NLM162P72-04 | 16 | 16 | 371512902135 | 0,55 | 1 | price |
| NLM252P72-04 | 25 | 16 | 371512902136 | 0,58 | 1 | price |
| NCM162P42-04 | 16 | 30 | 371512902137 | 0,65 | 2 | price |
| NCM252P42-04 | 25 | 30 | 371512902138 | 0,85 | 2 | price |
|
Table - Type of filter |
|||
|
NC |
filters for convertors |
N |
L element- modification |
|
NM |
filters for convertors |
P |
p - element |
|
NL |
filters for convertors |
C |
dual filters for convertors |
|
NA |
L element sealed |
A |
L element sealed |
|
NB, ND |
L element sealed |
S |
special model |
|
L |
L element |
F |
filters for Faraday boxes |
|
M |
L element- modification |
|
|
| Table - Leaking current max. | |||
| 0 | no limit | 6 | 1.7 mA |
| 1 | 0.75 mA | 7 | 20 mA |
| 2 | 3.5 mA | 8 | 1.5 mA |
| 3 | 10 mA | 9 | other |
| 4 | 40 mA | N | none |
| 5 | 0.35 mA | ||

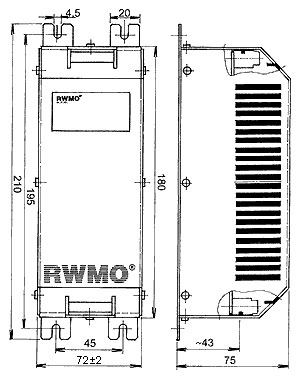

Dimensioned sketch size 1
Dimensioned sketch size 2
